Angle Strip Cutters

HC-380

Model HC-380 is a fully automatic hot and cold angle cutting machine with a 4 ¼ inch (100 mm) wide blade. The maximum width of cut at 45° is 2 inches. The HC-380 has the ability to automatically cut any angle from 0° to 45°. With a touch of a button you can set any angle you require, with no mechanical settings needed. The angle settings for the front and back angles are independently controlled, and the machine features a setting for counter angles. The 380 has controllable dwell.


Our price: $7,400.00 (link to purchase below)

Specifications:

Power Supply: 110v

Pneumatic: Air required

Feeding Speed: adjustable up to 13 inches per second

Cutting Length: approximately 40 feet

Cutting Width: 4.25 inches

Tolerance: 0.05% of total cut

Quantity: Up to 99,999 pieces

Heat maximum: 600 degrees

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

 Delivery time may vary.  Please verify delivery before purchasing.

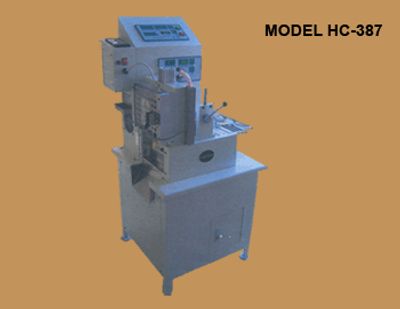

HC-387

With a 10.5 inch blade and adjustable angle, there's not much this machine can't do. Fully automatic and easy to operate, will cut the lightest ribbon or the heaviest webbing. With the 10.5" knife you are able to cut 5 rolls of 2 inch webbing at the same time or cut 6" material at any angle, up to 45°.


Our price: $21,200.00 (link to purchase below)

Specifications:

Power Supply: 110v

Feeding Speed: adjustable up to 13 inches per second

Cutting Length: approximately 40 feet

Cutting Width: 10 inches

Tolerance: 0.05% of total cut

Quantity: Up to 99,999 pieces

Heat maximum: 600 degrees

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

 Delivery time may vary.  Please verify delivery before purchasing.

US-119

 Model US-119 is a fully automatic ultrasonic angle cutting machine with a 4 ¼ inch (100 mm) wide blade. The maximum width of cut at 45° is 2 inches. The US-119 has the ability to automatically cut any angle from 0° to 45°. With a touch of a button you can set any angle you require, with no mechanical settings needed. The angle settings for the front and back angles are independently controlled, and the machine features a setting for counter angles.


Our price: $32,200.00 (link to purchase below)

Specifications:

Power Supply: 110v

Feeding Speed: adjustable up to 13 inches per second

Cutting Length: approximately 40 feet

Cutting Width: 4.25 inches

Tolerance: 0.05% of total cut

Quantity: Up to 99,999 pieces

Heat maximum: 600 degrees

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

Delivery time may vary.  Please verify delivery before purchasing.

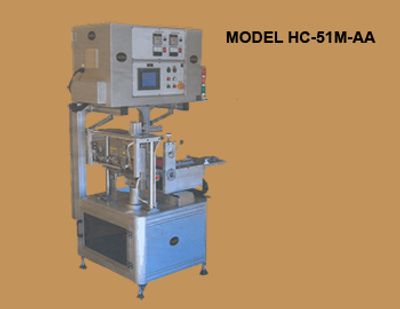

HC-51M-AA

 Automatic angle strip cutter with top and bottom line marking.


Our price: $20,200.00 (link to purchase below)

Specifications:

Power Supply: 110v

Feeding Speed: adjustable up to 13 inches per second

Cutting Length: approximately 40 feet

Cutting Width: 4.5 inches

Tolerance: 0.05% of total cut

Quantity: Up to 99,999 pieces

Heat maximum: 600 degrees

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

Delivery time may vary.  Please verify delivery before purchasing.

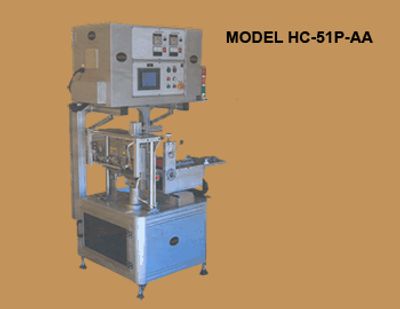

HC-51P-AA

The HC-51P-AA is a 4.5" wide hot and cold angle strip cutter with top and bottom line marking and hole punching.


Our price: $20,200.00 (link to purchase below)

Specifications:

Power Supply: 110v

Feeding Speed: adjustable up to 13 inches per second

Cutting Length: approximately 40 feet

Cutting Width: 4.5 inches

Tolerance: 0.05% of total cut

Quantity: Up to 99,999 pieces

Heat maximum: 600 degrees

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

Delivery time may vary.  Please verify delivery before purchasing.
