Hole Punching Strip Cutters

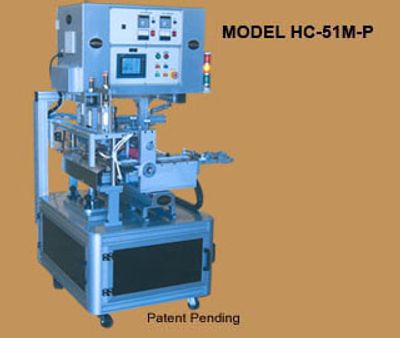

HC-51M-P

Machine will make up to 30 top/bottom line marks or hole punches within cut pieces. • Memory 100 patterns (additional memory available, up to 500). • Machine will cut to length hot/cold or special shapes. • Touch screen control panel. • Programmable counter. • Hot knife and hole punch have adjustable dwell. • Temperature of top and bottom heating elements on hot knife are independently controlled. • Width of cold blade 4 1/4" (wider blades available). • Width of hot blade 4 1/4" (wider blades available).

 Diameter of hole punches (1/8", 3/16", 1/4", 3/8", and 1/2") other sizes made to order. • Hole punch available in hot or cold. • Adjustable feed speed. • Automatic stop when roll ends. • Auto safety cover. • Universal line marker holder. • Available in 110 volts, 220 volts and 230 volts single phase (CE). • 85 pound of air pressure. • Dimensions: 77"H, 60"W, 46"D • Weight: 1000 pounds.



Our price: $22,200.00 (link to purchase below)

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

 Delivery time may vary.  Please verify delivery before purchasing.

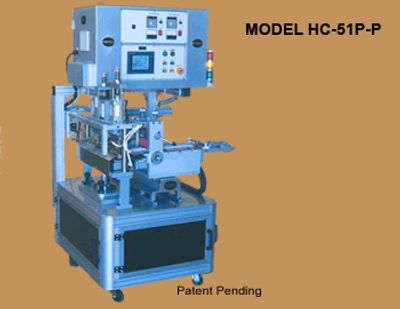

HC-51P-P

Machine will make up to 30 top/bottom line marks or hole punches within cut pieces. • Memory 100 patterns (additional memory available, up to 500). • Machine will cut to length hot/cold or special shapes. • Touch screen control panel. • Programmable counter. • Hot knife and hole punch have adjustable dwell. • Temperature of top and bottom heating elements on hot knife are independently controlled. • Width of cold blade 4 1/4" (wider blades available). • Width of hot blade 4 1/4" (wider blades available).

 Diameter of hole punches (1/8", 3/16", 1/4", 3/8", and 1/2") other sizes made to order. • Hole punch available in hot or cold. • Adjustable feed speed. • Automatic stop when roll ends. • Auto safety cover. • Universal line marker holder. • Available in 110 volts, 220 volts and 230 volts single phase (CE). • 85 pound of air pressure. • Dimensions: 77"H, 60"W, 46"D • Weight: 1000 pounds.


Our price: $26,200.00 (link to purchase below)

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

Delivery time may vary.  Please verify delivery before purchasing.

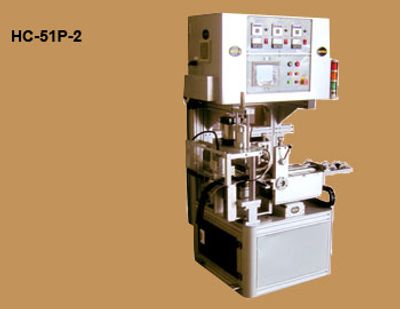

HC-51P-2

Model HC-51P-2 can do up to 100 hole punches side by side, the clamping system in front of the hole punch and knife prevents the material from moving.


Our price: $26,200.00 (link to purchase below)

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

 Delivery time may vary.  Please verify delivery before purchasing.

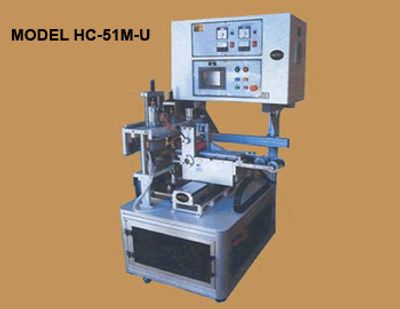

HC-51M-U



Hot and cold automatic strip cutter with top / bottom line marking and ultrasonic hole punching.

The HC-512M-U can do up to 30 hole punches (ultrasonically) and line marks on each cut piece. Locations of hole punches and line marks are programmable. Machine has the capacity of 500 memory locations.


Our price: $28,200.00 (link to purchase below)

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

Delivery time may vary.  Please verify delivery before purchasing.

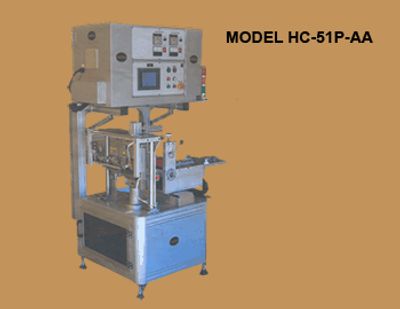

HC-51P-AA



Hot/Cold Angle Cutter

Automatic angle strip cutter with hole punching.


Our price: $20,200.00 (link to purchase below)

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

Delivery time may vary.  Please verify delivery before purchasing.

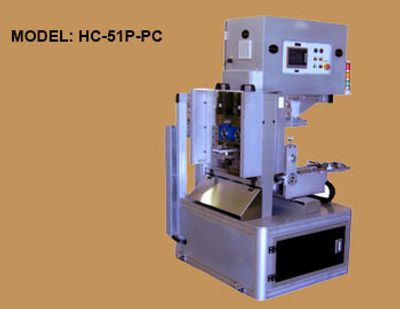

HC-51P-PC

The HC-51P-PC will puch multiple patterns of holes and will shap cut on the same piece.


Our price: $28,200.00 (link to purchase below)

Advantages of our strip cutters:

The top rollers on all of our strip cutters are gear driven, not pressure driven (springs) like other strip cutters.  This exclusive feature means that there is less slippage of material providing more accurate cuts.


The tolerance on our machines is +/- 0.05% of the total cut.


We use only the best Japanese stepper motors available.


We guarantee all parts for one year (including heating elements and knives).

 Electronics are guaranteed for two years (unmatched in the industry).


Every one of our machines is simple to operate.


Our machines measure in inches and millimeters.


Affordable replacement parts are kept in stock.


All machines are CE approved.

Purchase in online store

Delivery time may vary.  Please verify delivery before purchasing.
