Power Feed Roll Cradles

Our power feed roll cradles are used to  compliment roll pulling systems and for any other application that  requires a cradle. The roll cradles are custom manufactured to fit the customer's specifications of roll weight, width and diameter.  The  cradles are power fed utilizing a dancer system that independently  senses the demand using tension.  As demand increases, the variable  speed cradles output faster keeping minimal tension on the fabric.


The power roll feeders and cradles  can compliment any Maimin puller or feeder, be used in conjunction with  other brand equipment, or installed for a manual spreading  operation.  The dancer assembly works independently and therefor does not rely on an output signal from  other equipment.  Our power feed cradles feature a dual laser sensor  edge guide control to accurately feed to within 1/16".  The side shift  capabilities are customizable for the customer's needs.  We can  accommodate the worst telescoping rolls with side shift capabilities of  16" and more.


Precisely Feed Equipment

Our roll cradles will feed any equipment including CAD/Cam Plotters, spreaders, die cutters, clickers and countless other manufacturing and custom equipment.

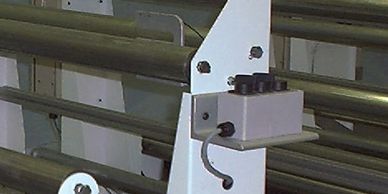

Accurately Edge Guide

The advanced edge guide system will keep your edge accurately placed on even the poorest rolled (telescoped) materials.

Feed on Demand

The dancer system allows communication free feeding on demand.  The dancer can also be set to provide tesion or operate nearly tension free.

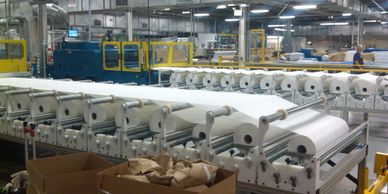

Multi-roll Cradles

Feeder / Rewinders

Roll Cradle Videos

Three Roll Cradle

Feeder / Rewinder
